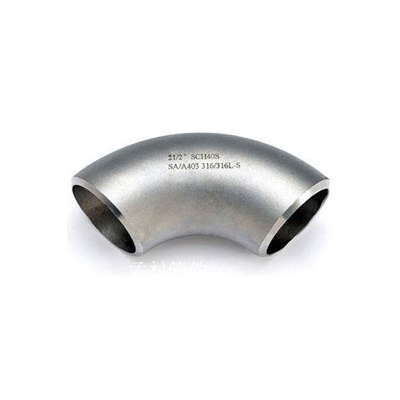

Pipe Elbow
Pipe elbows are mainly used for connecting two pipes or tubes, allowing a change of direction. We can provide short radius elbows and long radius elbows. Usually, pipe elbows are made of carbon steels, alloy steels, stainless steel or PVC, and more They have high strength, good toughness and resistance to corrosion.

Basic Info

Model No.: 4"                      Connection: Welding

Shape: Equal                        Head Code: Round

Angle: 90 Degree                 Wall Thickness: Sch40

Material: Stainless Steel        Technics: Pushing

Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API, ISO.UKS.SGS.BV

Color: Silver                           Thickness: SCH5-XXS

Application: Chemical, Water, Oil And Gas, Electricity             Size: 4"

Crafts: Pushing                       Standard: Ansi,Gost,Din,GB

Package: Wooden Boxes, Wooden Pallets

Brand Name: HAOYUAN

Type: SS316L 10" Sch10s Stainless Steel Elbow

Materials: 304,304L,321,316,316L,1Cr18Ni9Ti,0cr18ni9

Additional Info

Packaging: Wooden boxes, Wooden pallets

Productivity: 15T/Day

Brand: HAOYUAN

Transportation: Ocean,Land,Air

Place of Origin: CANGZHOU

Supply Ability: 500T/Month

Certificate: ISO

Product Description

Pipe Fittings Pipe Elbow SS316L 4" Sch10s Stainless Steel Elbow can be divided according to the angle: 45 Degree Elbow90 Degree Elbow, 180 degree bend. Practical applications will have 30 °, 60 ° and so on. In accordance with the bending radius can be divided into long radius elbows and Short Radius Elbow. Because of the corrosion resistance of stainless steel, acclaimed in practical applications.Stainless steel elbow is of the high proportion Cr , Ni alloy made, the content ratio of up to 20%. Common steel grades: 304,304L, 321,316,316L, 1Cr18Ni9Ti, 0cr18ni9.



Name:
Butt-Welded Seamless Pipe Fitting stainless steel elbow-SS316L ELBOW
Type 45\90\180 Degree Elbow,tee, reducer ,cap etc.
Size 1/2"-48" seamless&welded
Material ASTM A234 WPB,A403 WP304,WP304L,WP316/316L,A420 WPL6,WP5,WP11 ect.
Thickness SCH10-160,STD,XS,XXS
Standards ASTM B16.9/16.11/16.28,
JIS B2311/2220,DIN2605/2615/2616/2617,GOST ect.
Surface Treatment Black Painting, Anti-rust Varnishes, Anti-rust Oil, Hot Galvanized, 3PE Coating, Epoxy Coating.
Packing Wooden Case/Pallet
Delivery time 15-35days or according to customer's request
Certificate

ISO9001:2000, CE








Stainless Steel Elbow


Nominal Diameter

Outside Diameter
at Bevel

Center to End

Center to Center

Back to Face

45°Elbow

90°Elbow

180°Elbow

B

A

O

K

DN

NPS

Series A

Series B

Long
Radius

Long
Radius

Short
Radius

Long
Radius

Short
Radius

Long
Radius

Short
Radius

15

1/2

21.3

18

16

38

-

76

-

48

-

20

3/4

26.9

25

19

38

-

76

-

51

-

25

1

33.7

32

22

38

25

76

51

56

41

32

1.1/4

42.4

38

25

48

32

95

64

70

52

40

1.1/2

48.3

45

29

57

38

114

76

83

62

50

2

60.3

57

35

76

51

152

102

106

81

65

2.1/2

76.1(73)

76

44

95

64

190

127

132

100

80

3

88.9

89

51

114

76

229

152

159

121

90

3.1/2

101.6

-

57

133

89

267

178

184

140

100

4

114.3

108

64

152

102

305

203

210

159

125

5

139.7

133

79

190

127

381

254

262

197

150

6

168.3

159

95

229

152

457

305

313

237

200

8

219.1

219

127

305

203

610

406

414

313

250

10

273.0

273

159

381

254

762

508

518

391

300

12

323.9

325

190

457

305

914

610

619

467

350

14

355.6

377

222

533

356

1067

711

711

533

400

16

406.4

426

254

610

406

1219

813

813

610

450

18

457.2

478

286

686

457

1372

914

914

686

500

20

508.0

529

318

762

508

1524

1016

1016

762

550

22

559

-

343

838

559

1676

1118

1118

838

600

24

610

630

381

914

610

1829

1219

1219

914

650

26

660

-

406

991

660

1982

1320

-

-

700

28

711

720

438

1067

711

2134

1422

-

-

750

30

762

-

470

1143

762

2286

1524

-

-

800

32

813

820

502

1219

813

2438

1626

-

-

850

34

864

-

533

1295

864

2590

1728

-

-

900

36

914

920

565

1372

914

2744

1828

-

-

950

38

965

-

600

1448

965

2896

1930

-

-

1000

40

1016

1020

632

1524

1016

3048

2032

-

-

1050

42

1067

-

660

1600

1067

3200

2134

-

-

1100

44

1118

1120

695

1676

1118

3352

2236

-

-

1150

46

1168

-

727

1753

1168

3506

2336

-

-

1200

48

1220

1220

759

1829

1219

3658

2440

-

-



High-quality products


stainless pipe fittings



galvanized steel pipe fitting

Stainless steel elbow are mainly used for connecting two pipes. all the fittings in the piping system use , 80% proportion is elbow. Typically,we choose different elbow forming process according to different wall thickness and different materials. Currently, manufacturers of seamless elbow forming process commonly use hot push, stamping, extrusion.

Elbow Workshop


Elbow Production



Elbow beveling



Production of stainless steel elbow

Our packaging


elbow stainless steel



stainless steel elbows suppliers



Packing

Sales Network


Sales Network













Looking for ideal Sch10s Stainless Steel Elbow Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the SS316L Stainless Steel Elbow are quality guaranteed. We are China Origin Factory of SS316L Steel Elbow. If you have any question, please feel free to contact us.
